AXIS OS is our operating system for edge devices. It’s used in more than 300 products with the broadest partner application reach in the security industry. It’s a Linux-based OS that’s built around openness, transparency and cybersecurity.

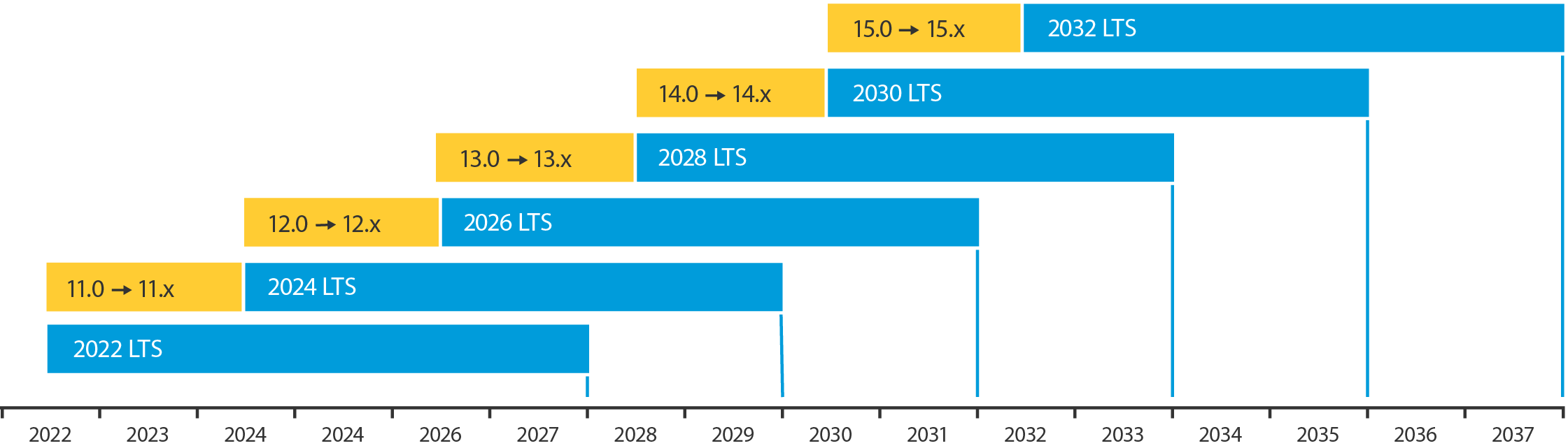

AXIS OS features different tracks depending on your needs. The long-term support (LTS) tracks maximize stability and focus on keeping a well-integrated 3rd party system by providing bug fixes and security patches. The active track on the other hand provides access to the newest state-of-the-art features and functionalities as well as bug fixes and security patches, which defines the active track as the software-development-focused track.

AXIS OS support overview

The active track releases a new version every 2–3 months where only the latest version is supported. The LTS tracks are created every two years and are supported and maintained for about 5 years.

Release schedule

In the schedule below you can find information about upcoming releases on the active track and the LTS tracks.

VersionTrackPreliminary release datePlanned features and updates
11.9ActiveFebruary/March 2024
  • cURL version 8.5.0

10.12LTS 2022February/March 2024
  • OpenSSL 1.1.1x

9.80LTS 2020February 2024 and March 2024
  • February — Apache version 2.4.58.

  • March — OpenSSL 1.1.1x

8.40LTS 2018February/March 2024
  • Apache version 2.4.58.

  • OpenSSL 1.1.1x

  • Last release on LTS 2018. Read more here.

11.11Upcoming LTS 2024August/September 2024
  • More information will come.

12.0Upcoming ActiveSeptember 2024

Upcoming breaking changes

AXIS OS 11 active track will transit to LTS 2024 which will be launched in Q3 2024. The new active track will be AXIS OS 12 in which the announced breaking changes will be implemented. The majority of the breaking changes will be introduced at the beginning of the new active track, and the remaining breaking changes will come in the lifetime of AXIS OS 12 and will be communicated in advance.

Please note that some changes will already take place in AXIS OS 11, but with limited impact. Changed default behavior in AXIS OS 11 will affect the product after a factory default as well as new products that are launched with that specific version, but not when doing an upgrade i.e. if you upgrade the AXIS OS without factory default, your products will not change their behavior.


Axis always strives for providing the backward compatibility. However, introducing breaking changes are sometimes inevitable in order to:

  • Improve cybersecurity: Axis might remove an outdated feature or change the behavior of an existing feature in order to improve the security.

  • Update existing functionality and improve usability: Axis updates the existing functionality with new default settings or supersedes them with more advanced functionality to extend use cases.

In both cases, we have introduced an alternative way of doing the same things and communicated it in advance. Axis tries to make these changes mostly after creating a new LTS track, to give more time to adjust while maintaining the security.

Note

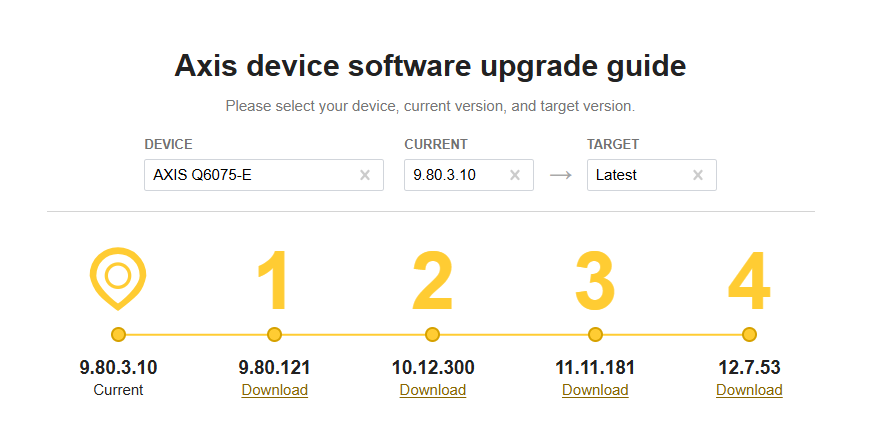

If you experience issues after upgrading to AXIS OS 12, utilize the rollback option to let the device revert back to its previous AXIS OS version. See guidelines here.

Planned

Changes in AXIS OS 12.0

Important

Changes that apply to the first version of the upcoming active track, AXIS OS 12.0. Please note that the changes can be adjusted in future.

  • Disabled HTTP Port 80 redirects

    In previous security penetration tests, it was emphasized to Axis to disable HTTP Port 80 redirects for increased security and to avoid information leakage. Axis devices are currently configured to HTTPS-only, HTTP port 80 redirects are enabled informing accessing clients that no communication is allowed onto port 80 and redirect the accessing client to port 443 instead. Axis will follow the general recommendation from third party penetration test laboratories and will disable HTTP port 80 redirects when the device is configured to HTTPS-only.



    In order to test your client for possible impact, configure your Axis device for HTTPS-only and configure a Firewall rule in AXIS OS 11.9 as seen below where the Axis device would effectively block port 80 communication for a specific client that tries to connect.



    Why is this change introduced? To lower the attack surface of the device and increase the overall device security.
    How can it affect me? If you access the Axis device via HTTP, it will not work correctly with AXIS OS 12.0 or higher. Please use HTTPS instead.


  • Removed support for SMB 1.0 and 2.0

    The Server Message Block Protocol (SMB) is widely used for mounting network shares when storing recordings. While secure versions of the SMB protocol are supported and available in Axis devices (2.1, 3.0, 3.02 and 3.1.1), the insecure versions (1.0 and 2.0) are still available to use but disabled in factory defaulted state. Axis will remove version 1.0 and 2.0 completely to increase the overall security and to prevent users from enabling these protocol versions by mistake.


    Why is this change introduced? It is obsolete, and keeping it might be a security threat.
    How can it affect me? If you have a storage connection requiring these versions, they will not work anymore.


  • Removed support for OpenSSL 1.1.1

    Since AXIS OS 11.6 (August 2023), Axis devices support simultaneously version 1.1.1 and 3.0 of the cryptographic software backend OpenSSL. To allow for smooth transition, OpenSSL 1.1.1 will still be supported up until and including the upcoming LTS 2024 track. With AXIS OS 12, OpenSSL 1.1.1 support will be removed. Patches and security updates of OpenSSL 1.1.1 will still be supported on active AXIS OS long-term support tracks as Axis has signed a support contract with the OpenSSL foundation to receive prolonged support.


    Why is this change introduced? It is obsolete for the active track as the active track run a newer version.
    How can it affect me? If you have third party software using OpenSSL 1.1.1, it will not work correctly with AXIS OS 12.0 or higher.


  • Removed support for TLS 1.0/1.1 HTTPS connections

    Axis devices have support for modern encryption technology through TLS 1.2/1.3 that are used by default for HTTPS connections with the option to enable older, outdated and insecure TLS 1.0/1.1 versions for establishing backwards compatibility to legacy systems not being capable of supporting more secure HTTPS connections. Axis will remove TLS 1.0/1.1 versions for HTTPS connections completely to increase overall security and to prevent users from enabling these protocol versions by mistake.

    VAPIX API Parameter: root.HTTPS.AllowTLS1 and root.HTTPS.AllowTLS11



    Why is this change introduced? It is obsolete, and keeping it might be a security threat.
    How can it affect me? If you have third party software using TLS 1.0/1.1 HTTPS connections, it will not work correctly with AXIS OS 12.0 or higher.


  • Basic authentication for HTTPS connections

    Axis devices perform digest authentication when serving both HTTP and HTTPS connections. Since HTTPS connections are preferred for increased security, Axis will change the default behavior so that basic authentication is used for HTTPS connections only. Using basic authentication in HTTPS connections is IT-industry standard and allows Axis devices to operate in a well-defined and common practice as well. Digest authentication will still be kept for serving for unencrypted HTTP connections. Using HTTPS only is the recommended operational mode for Axis devices.


    Why is this change introduced? To follow the IT-industry standard.
    How can it affect me? If you using digest authentication for HTTPS connection, it will not work correctly with AXIS OS 12.0 or higher.


  • Removal of vFAT

    The possibility to use vFAT as file system for SD cards will be removed. A long time ago, SD cards were delivered with vFAT as the standard file system for cards up to 32GB. Since such SD cards are no longer used, the usefulness of vFAT is very limited.


    Why is this change introduced? Axis has since start recommended Ext 4. vFat should never be used.
    How can it affect me? If you are using the not recommended vFat file system, it will not work anymore with AXIS OS 12.0 or higher.

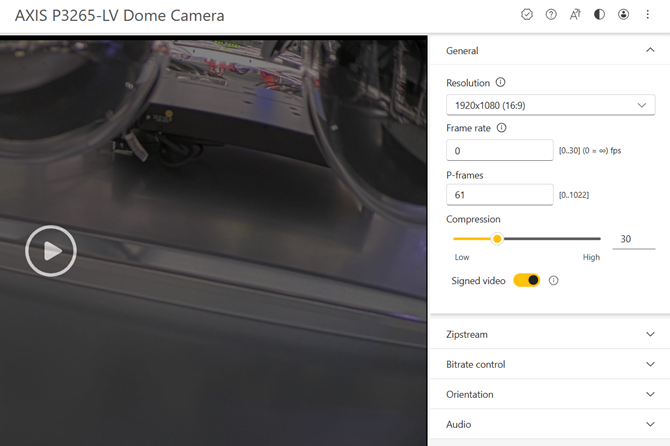

  • Removal of the old web interface

    The old web interface, also called “AXIS OS web version B”, will be removed.


    Why is this change introduced? The old web interface is no longer needed since the new interface now have all features implemented. It is removed to save memory space on the device and to simplify both usage and maintenance. Additionally, the old web interface used a number of outdated libraries and removing it will make the device more secure.

    How can it affect me? The new web interface will be displayed after upgrade.


  • ACAP related changes:

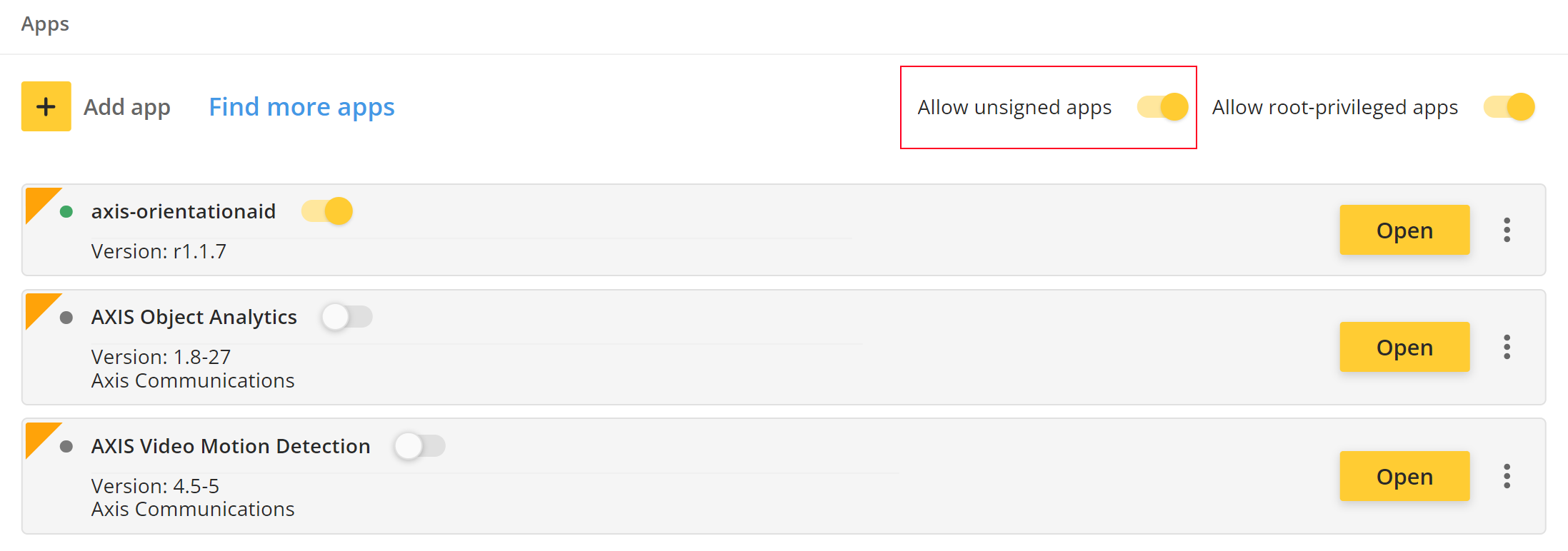

    • Signed ACAP applications only
      From AXIS OS 12.0, the below parameter that allows to install unsigned applications will be removed and it becomes mandatory to use signed applications. However, for development purposes there will be a possibility to bypass the ACAP signature requirement by unlocking individual products. For more information and timeline, go to Additional security in AXIS OS and ACAP applications.



      Why is this change introduced? To lower the attack surface of the device and increase the overall device security.
      How can it affect me? If you are trying to install unsigned ACAP, it will not work correctly with AXIS OS 12.0 or higher.


    • ACAP installation behaviour

      The ACAP installation is now aborted if the post-install script exits with an error code. Previously, the ACAP is installed nevertheless and warnings were printed in the log files.


      Why is this change introduced? To increase the ACAPS reliability on the market.
      How can it affect me? ACAP vendors are informed and should compile a new ACAP version without errors if affected.


    • Removal of Basic analytics ACAP applications

      Due to updates to our framework, it is not possible to support some older types of ACAP applications and they will therefore be removed.
      This applies to Axis Basic Enter-Exit, Axis Basic Object Counter and Axis Basic Object Removed


      Why is this change introduced? Due to architectural changes.
      How can it affect me? If you are using any of these ACAPs, do not upgrade until the system has a verified replacer.


    • Removed support for Add-On applications

      Add-On applications are no longer supported. All applications of this type should have replacements in the form of ACAP applications or the equivalent functionality is now built into the device software itself.


      Why is this change introduced? Unofficial and undocumented formats for application packages shall not be used due to the security risk. Thus, it is removed since the ACAP application format can be used instead.
      How can it affect me? If you have an ACAP using this format, it will not work correctly with AXIS OS 12.0 or higher.


    • Removal of libcapture library

      The libcapture library for ACAPs is obsolete and will be removed.  It is recommended to use the Video capture API instead. For more information, visit the ACAP SDK Documentation.


      Why is this change introduced? It is obsolete, and keeping it might be a security threat.
      How can it affect me? If you have an ACAP using this library, it will not work correctly with AXIS OS 12.0 or higher.


    • Removal of vaconfig.cgi

      The ACAP applications managed by the vaconfig.cgi API is no longer supported,  this configuration and management API is therefore obsolete and will be removed.


      Why is this change introduced? It is obsolete, and keeping it might be a security threat.
      How can it affect me? If you have an ACAP using this library, it will not work correctly with AXIS OS 12.0 or higher.


  • VAPIX API changes:

    • Rate Control changes for RTSP
      As the VAPIX Rate Control API has evolved over the years, the relationship between some of the URL options and param.cgi parameters has become complicated. This will be simplified in upcoming versions of Axis OS. This was communicated earlier here.


      Why is this change introduced? To simplify the Rate control API.
      How can it affect me? The new API is supported by the product when Properties.Image.RateControl.Version is 2.0 and higher. videobitrate and Image.I#.RateControl.TargetBitrate are deprecated from now No changes are made when it comes to Average Bitrate (ABR).


    • Disabled basic device information
      The Basic Device Information VAPIX API allows to retrieve general information about the Axis product with no authentication. This is useful for device discovery and profiling during network and application onboarding. Axis will change the default behavior so that the Basic Device Information VAPIX API will be automatically disabled after the Axis product is initialized. The product initialization is completed when the first initial account with password is created.


      Why is this change introduced? To lower the attack surface of the device and increase the overall network security.
      How can it affect me? If you have third party software using this API after onboarding, it will not work correctly with AXIS OS 12.0 or higher.


    • Removal of getBrand.cgi
      The previously deprecated VAPIX API axis-cgi/prod_brand_info/getbrand.cgi has been removed. It is recommended to use the Basic Device Information VAPIX API instead, see more info in the VAPIX Library. Please find below an example output of the information that was possible to receive through getBrand.cgi, all the information is still available and covered in the referenced Basic Device Information VAPIX API.

      Example output of getBrand.cgi:

      Brand.Brand=AXIS

      Brand.ProdFullName=AXIS P3265-LV Dome Camera

      Brand.ProdNbr=P3265-LV

      Brand.ProdShortName=AXIS P3265-LV

      Brand.ProdType=Dome Camera

      Brand.ProdVariant=

      Brand.WebURL=http://www.axis.com


      Why is this change introduced? It is obsolete and replaced by a different API.
      How can it affect me? If you have third party software using this API, it will not work correctly with AXIS OS 12.0 or higher.


    • Removal of releaseinfo.cgi
      The axis-release/releaseinfo.cgi VAPIX API has been removed. It is recommended to use the Basic Device Information VAPIX API instead, see more info in the VAPIX Library.

      Example output of axis-release/releaseinfo.cgi:

      part=6975649029

      version:11.2.53


      Why is this change introduced? It is obsolete and replaced by a different API.
      How can it affect me? If you have third party software using this API, it will not work correctly with AXIS OS 12.0 or higher.


    • PTZ tilt coordinates are not handled correctly in metadata
      PTZ tilt coordinates are not handled correctly in metadata. From AXIS OS 12, VAPIX Metadata for pan and tilt position will be calculated with physical constraints in tilt and pan when using Generic Pan/Tilt Position Space, in the same way as calculated in ONVIF already. A new parameter will be introduced: root.Properties.API.MetaData.PTZ.GenericPanTiltPosition=truelimitations


      Why is this change introduced? Because the PTZ generic Pan/tilt metadata was presented wrongly.
      How can it affect me? If using the PTZ generic Pan/tilt metadata the information is not correct. New parameter should be used to get the correct PTZ generic Pan/tilt metadata.


    • Remove Legacy Overlays

      The possibility to create overlays via the parameter CGI will be completely deprecated. This was communicated earlier here. An example of the old overlay is provided below.



      Why is this change introduced? Overlays have their own API, dynamicoverlay CGI, with direct access to the overlay system. There for should this old way be deprecated.
      How can it affect me? If you have third party software using this API, it will not work correctly with AXIS OS 12.0 or higher.


    • Event and Action Services VAPIX API changes

      The Event and Action Services VAPIX API has been hardened and will not disclose sensitive recipient connection details anymore such as username and password.
      Previously, those information were available by authenticated administrator-privileged accounts only. Recipients in the Event and Action Services VAPIX API are used so that Axis networked devices can connect to a server. Moving forward, It is expected from clients that receive the recipient configuration that they do not require this specific information and store it pro-actively themselves prior to recipient configuration.


      Why is this change introduced? To lower the attack surface of the device and increase the overall device security.
      How can it affect me? There should be no impact as it is expected from clients that receive the recipient configuration that they do not require this specific information and store it pro-actively themselves prior to recipient configuration.

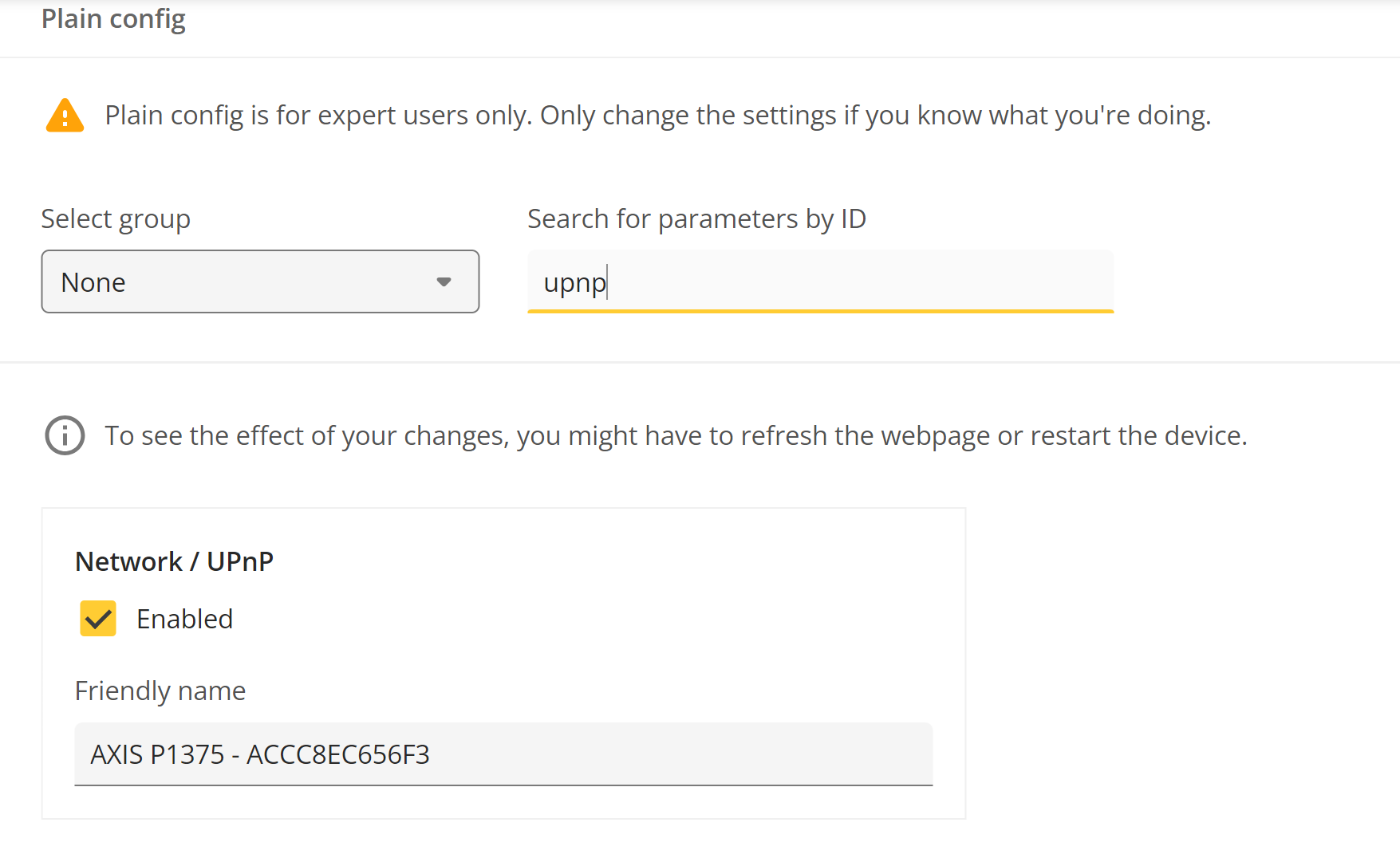

    • Disabled UPnP discovery protocol

      Axis devices currently have UPnP and Bonjour enabled in factory defaulted state for general device discovery. The Bonjour protocol allows for device detection within the local subnet where the device is located (example: 192.168.1.0/24). The UPnP protocol allows device discovery across networks (example: 192.168.1.0/24 and 192.168.2.0/24) but only if multicast-routing is properly configured. Axis believes that the device detection within the local subnet is the main use case for a discovery protocol and therefore will disable UPnP in factory defaulted devices moving forward. This will also lower the attack surface of the device and increase the overall network security. The UPnP protocol remains available in Axis devices with the option for the user to enable it if needed.

      VAPIX API parameter: root.Network.UPnP.Enabled



      Why is this change introduced? To lower the attack surface of the device and increase the overall device security.
      How can it affect me? If you have third party software only using UPnP for device discovery, it will not work correctly with AXIS OS 12.0 or higher and users need to enable UPnP first on the Axis device.

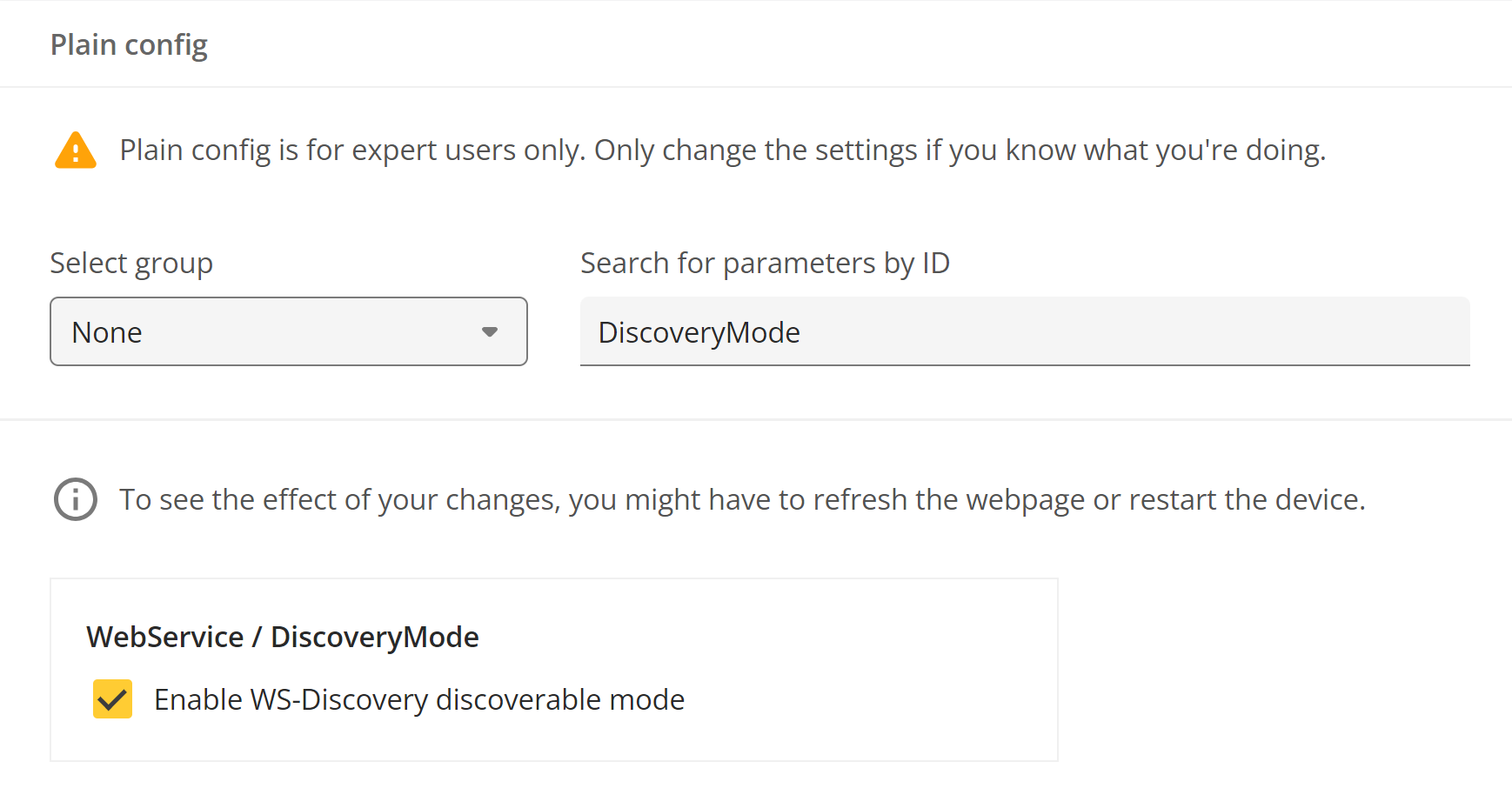

    • Disabled WS-Discovery protocol

      Axis devices currently have the WS-Discovery (WebService-Discovery) protocol enabled in factory defaulted state as additional option for ONVIF-related device discovery. However, the ONVIF interface is not enabled and configured in factory defaulted state which makes the availability of the WS-Discovery protocol obsolete. Axis will adapt the default behavior and will disable the WS-discovery protocol in factory defaulted state. The WS-discovery will be enabled only when an ONVIF user is configured on the Axis device. This will also lower the attack surface of the device and increase overall network security. However, the WS-Discovery protocol can be disabled per user’s discretion after device detection and onboarding through a parameter.

      VAPIX API parameter: WebService.DiscoveryMode.Discoverable



      Why is this change introduced? To lower the network footprint and increase the cybersecurity level of an Axis device when ONVIF is not being used.
      How can it affect me? You will not be able to discover the device until an ONVIF user has been created on the Axis device.


    • Added path restrictions for dynamicoverlay.cgi

      The Dynamic Overlay VAPIX API that allows to configure the patch to the overlay image to display has been limited to /etc/overlays/. It is not possible anymore to alter the path through VAPIX API.


      Why is this change introduced? Supporting to alter the path trough API is not best practice and keeping it might be a security threat.
      How can it affect me? If you have third party software using this API, it will not work correctly with AXIS OS 12.0 or higher.


    • Removal of network filter API

      The current IP-filtering VAPIX API will be replaced by a more feature-rich firewall application that can be configured through JSON REST API. The new firewall service will be available in AXIS OS 11.8 (January 2024) and can be used from there on. The legacy network filter API with the following below parameters will be removed in AXIS OS 12:

      Network.Filter.Enabled

      Network.Filter.Input.AcceptAddresses

      Network.Filter.Input.Policy

      Network.Filter.Log.Enabled


      Why is this change introduced? It is obsolete, and replaced by the new host based firewall.
      How can it affect me? If you have third party software using this API, it will not work correctly with AXIS OS 12.0 or higher.


Changes during AXIS OS 12

Important

Changes taking place among the first versions of the upcoming active track, AXIS OS 12. Please note that the changes can be adjusted in future.

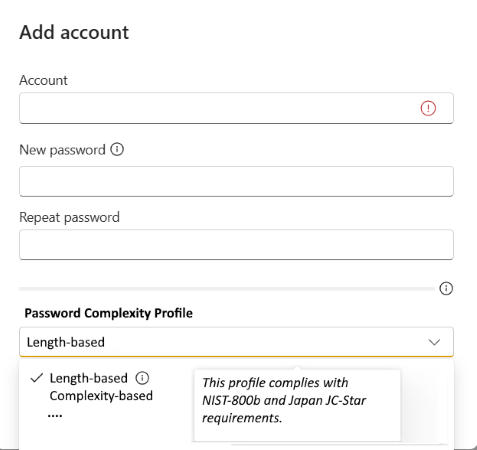

  • Password complexity enforcement

    The user is currently supported with a password strength indicator for selecting secure passwords for service accounts. However, the user might select insecure passwords anyway. At some point in time in AXIS OS 12, it is planned to introduce a password complexity enforcement to enforce using secure-considered passwords when accessing an Axis device.


    Afterward, it will not be possible to use insecure password combinations. It is expected that the password complexity enforcement will be standardized and will require a minimum password length of 14 characters including small and big letters, special signs and numbers, alternatively small and big letters with a password length of 64-characters.
    More information to come. The decision on when to introduce password complexity has not been made yet but will be communicated in time.



    Why is this change introduced? To increase the cybersecurity level.

    How can it affect me? Will be updated shortly.

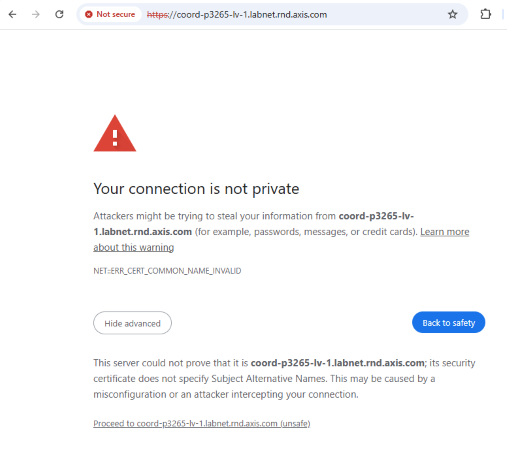

  • HTTPS-only enforcement

    The current default behavior of Axis devices in factory defaulted state is that HTTP and HTTPS are both enabled allowing for a flexible choice on which protocol to use to connect to the Axis device. Axis, since many years, has given the recommendation to configure the Axis device to HTTPS-only during initial configuration according to the AXIS OS Hardening Guide. Please see the current default settings below.


    This default behavior is likely to change at some point in time in AXIS OS 12 to increase overall default security and protect communication between the Axis device and the human user as well as applications. Axis has plans to change the default behavior so that HTTP communication will be disabled, and HTTPS-only communication is the only enabled protocol to be used in factory defaulted state.



    Why is this change introduced? To increase the cybersecurity level.
    How can it affect me? If you have third party software using HTTP, it will not work correctly with AXIS OS 12.0 or higher.


  • Removal of unofficial certificate management
    The unofficial and externally undocumented custom certificate management API with the VAPIX endpoints /axis-cgi/certappmgmt.cgi and /axis-cgi/certmgmt.cgi will be removed. For supported AXIS OS certificate management and enrollment APIs, please refer to the VAPIX Library.


    Why is this change introduced? Unofficial and undocumented APIs shall not be used due to the security risk. Thus, it is removed since there are other VAPIX APIs that can be used instead.
    How can it affect me? If you have third party software using this API, it will not work correctly with AXIS OS 12.0 or higher.


  • IPv4 address changes

    To date, Axis devices have never been IPv4 compliant following the corresponding RFC framework. That resulted in the Axis device having a default IP-address which is 192.168.0.90/24. This circumstance leads to network related issues that we want to resolve. For instance, if no DHCP server is available on the network, the default IP address of Axis devices currently is 192.168.0.90/24 regardless of whether anyone on the same network segment already uses the same IP address. This may cause service interruptions for other devices if such IP address conflict occurs. At the same time, the link-local address (169.254.x.x/16) is enabled by default regardless of whether it’s used, which is not in compliance with the RFC standard.


    With the above changes in place, there will be no default IP addresses of AXIS OS devices anymore. The Axis OS devices will use the IP addresses either from a DHCP server or statically configured address. The devices will only fall back to link-local addresses if there is an IP address conflict detected, or a DHCP server is unavailable in the network.


    Why is this change introduced?

    • To be completely RFC IPv4 compliant.

    • Disable link-local address when it is not used.

    • Better user experience for our customers when multiple factory-defaulted Axis devices are placed on the same network simultaneously.

    • Increase robustness and detect IP address conflicts.

  • How can it affect me? Affects during installation, AXIS devices will request IP adress from the network it attaches to etc DHCP.

  • Removal of the lightcontrol web service API

    The lightcontrol web service API (implemented in ws/wsd/impl/ali) has been deprecated for many years and is replaced by the lightcontrol-cgi JSON API. Information about this change has been sent out previously to partners.


    Why is this change introduced? It is obsolete, and keeping it might be a security threat.
    How can it affect me? If you have third party software using this API, it will not work correctly with AXIS OS 12.0 or higher.


Applied

Changes during AXIS OS 11

Breaking changes done in AXIS OS 11.

  • Removal of date.cgi

    Since AXIS OS 11.0, the date.cgi has been removed and replaced by time.cgi. For more information, visit the VAPIX library


    Why is this change introduced? It is obsolete, and keeping it might be a security threat.
    How can it affect me? If you have third party software using this API, it will not work correctly with AXIS OS 11.0 or higher.

  • Support removed for BMP format

    Since AXIS OS 11.0, support to request an image in BMP file format has been removed. For more information, visit the VAPIX library.


    Why is this change introduced? It is obsolete, and keeping it might be a security threat.
    How can it affect me? If you have third party software using this feature, it will not work correctly with AXIS OS 11.0 or higher.

  • Removed support of recording mediaclip through Mediaclip API

    Since AXIS OS 11.0, support to record a mediaclip using the Mediaclip API has been removed. For more information, visit the VAPIX library.


    Why is this change introduced? It is obsolete, and keeping it might be a security threat.
    How can it affect me? If you have third party software using this feature, it will not work correctly with AXIS OS 11.0 or higher.

  • Parameters in the root.PTZ parameter group changes

    Since AXIS OS 11.0, changed access for a number of parameters in the root.PTZ parameter group. For more information, visit the VAPIX library.


    Why is this change introduced? Due to architectural changes.
    How can it affect me? If you have third party software using this, it will not work correctly with AXIS OS 11.0 or higher.

  • Removed support for proxy SOCKS version 4 and 5

    Since AXIS OS 11.0, support for proxy SOCKS version 4 and 5 has been removed.


    Why is this change introduced? It is obsolete, and keeping it might be a security threat.
    How can it affect me? If you have third party software using this feature, it will not work correctly with AXIS OS 11.0 or higher.

  • Removed installable decoder AAC

    Since AXIS OS 11.0, the installable audio decoder for AAC has been removed and is no longer downloadable from the cameras web interface.

  • Removed installable decoder H.264

    Since AXIS OS 11.0, the installable decoder for H.264 has been removed and is no longer downloadable from the cameras web interface.

  • PTZ VAPIX API version 2

    Since AXIS OS 11.0, there is a new version of the PTZ VAPIX API. For more information, visit the VAPIX library.

  • Remove access via FTP protocol

    Since AXIS OS 11.1, we have removed the possibility to access the device via the FTP protocol, to increase overall minimum cybersecurity level.
    For troubleshooting purposes it is recommended to use secure SSH access. Note that upload from the device to an FTP server is still possible. For more information, visit SSH access in the AXIS OS Knowledge base.


    Why is this change introduced? To increase overall security.
    How can it affect me? If you have third party software using this feature, it will not work correctly with AXIS OS 11.1 or higher.

  • Removal of edit.cgi

    Since AXIS OS 11.1, the edit.cgi has been removed. For more information, visit the VAPIX library.


    Why is this change introduced? It is obsolete, and keeping it might be a security threat.
    How can it affect me? If you have third party software using this API, it will not work correctly with AXIS OS 11.1 or higher.

  • Removal of libvidcap

    The libvidcap has been removed. Use Video capture API instead. For more information, visit the ACAP developer guide


    Why is this change introduced? It is obsolete, and keeping it might be a security threat.
    How can it affect me? If you have third party software using this API, it will not work correctly with AXIS OS 11.1 or higher.

  • Removal of the built in motion detection

    In AXIS OS 11.2 the old built in motion detection, also known as VMD1, was removed.


    Why is this change introduced? It is obsolete, and keeping it might be a security threat.
    How can it affect me? If you have third party software using this application, it will not work correctly with AXIS OS 11.2 or higher.


  • No dedicated root user in factory defaulted state

    Since AXIS OS 11.5, no dedicated root user is pre-configured in factory defaulted state. To ease O3C-related integrations and to allow time to adapt, Axis made a modification that currently creates this root user for O3C onboarding/integration. From LTS 2024, O3C integrations shall not rely on the previously available admin user named “root”. If a separate (admin) user is deemed necessary for some purpose, this user shall be specifically created during the initial onboarding/integration.


    Why is this change introduced? To lower the attack surface of the device and increase the overall device security.
    How can it affect me? If you have third party software using root as hardcoded username, it will not work correctly with AXIS OS 12.0 or higher unless you create a user root.


  • Signed ACAP applications as default and removed root-privileged access

    Axis will require ACAP applications to be signed upon installing them onto the Axis device to increase overall security. We will also remove root-privileged access to Axis products and ACAP applications to increase ACAP confidentiality by better protecting their data and secrets, prevent information leakage as well as elevated AXIS OS system integrity through the removal of system-wide root-privileged access for users and applications. Please read the full guide for more information. The changes in AXIS OS 11 are summarized below.


    Why is this change introduced? To increase the security on the device.
    How can it affect me? Affected ACAPs has been communicated about this and should create a new version if they are affected regarding this change.


AXIS OSTimelineChanges
11.5June 2023
  • VAPIX/Web Access: The user “root” is an ordinary administrator.

  • ACAP Privileges: Root privileges can be disabled.

11.6September 2023
  • SSH Access: Root user access can be disabled.

11.8 January 2024
  • SSH Access: Root user access is disabled by default but can be enabled.

  • ACAP Privileges: Root privileges is disabled by default but can be enabled.

11.xQ3 2024
  • Axis devices only accept installation of signed ACAP applications by default. Devices can be configured to accept unsigned applications

LTS 2024 H2 2024

Support: 2024-2029. Can be used as a stop-gap solution until an ACAP application is fully adapted.

  • SSH Access: Root user access is disabled by default but can be enabled.

  • ACAP Privileges: Root privileges is disabled by default but can be enabled.

Additional information

In this section you can read about updates and features in upcoming AXIS OS releases. For more information about:

Next AXIS OS version

Please note that this schedule is preliminary and that both time schedule and included features are subject to change as work progresses.

AXIS OS 11.9

Scheduled for: February/March 2024

  • Updated user-management API. In version 1.2, it is possible to retrieve information from the device if it supports admin users named anything else than "root".

  • Enabled Radar and Camera Autocalibration for automatically learning scene elevation.
    Applies to: AXIS Q1656-DLE

  • Added support for Network radar pairing (Edge-to-edge technology). The radar view will use the second view area to show the radar view when pairing is enabled.
    Applies to: AXIS P1465-LE-3 and AXIS P3265-LVE-3

  • Analytics

    • Improved object detection and added support for new object classes; HumanFace, LicensePlate, and vehicle sub-classes Bus, Car and Truck. These classes have been added to the RTSP video analytics metadata stream. More information is provided here.
      Applies to:AXIS P3727-PLE


      To see which classes are supported on your device, use getSupportedMetadata which is documented in the The Analytics Metadata Producer Configuration API.  More information is provided in the AXIS Developer Community and the AXIS OS Knowledge base.

  • Cybersecurity

    • Updated cURL to version 8.5.0 to increase overall cybersecurity level.

    • The Trusted Execution Environment (TEE) is selectable as a secure keystore, providing higher performance and lower latency compared to the high-security and certified TPM 2.0 and Secure Element. More information and guidance can be found here.

      Applies to: Products on ARTPEC-8CV25, S6L and 6SX

  • VAPIX

    • Added a new VAPIX REST API to be able to write a custom message into the system log of the device.

Current AXIS OS version

AXIS OS 11.8

Release date: January 2024

  • Added support for host-based firewall to improve network security. The legacy "IP-Filtering"-service is deprecated and will be removed after AXIS OS 2024 LTS.

  • Added support for EventBroker MQTT capability in ONVIF profile M.

    Applies to: All product with support for metadata.

  • Added MQTT Graph overlays.

  • Added support for WLAN country code.

    Applies to: AXIS M1075-L

  • Added support for IEEE 802.1AE MAC Security (MACsec) with Static CAK/Pre-Shared Key (PSK) and Dynamic CAK/EAP-TLS. Dynamic CAK/EAP-TLS is enabled by default. MACsec can be configured from the security tab in the web-interface and allows for complete layer-2 network encryption between the Axis device and network switch. Read more in the AXIS OS Knowledge base.

    Applies to: All products except AXIS S30-series

  • Added a new Log API via the device config framework. A way to see if a device supports Log API is by running http://{device}/config/discover/apis/log/v1.

  • ACAP

    • Added support for Reverse Proxy in the ACAP manifest/installation framework.

    • Added support for accessibility of static HTML files for operators and viewers in the new manifest schema.

    • ACAP applications using the axaudio lib will be able to get raw (pcm) audio streams even if the input is disabled.

      Applies to: All products with audio and ACAP support

  • Root-Privileges

  • VAPIX

    • A new VAPIX REST API for saving/clearing all severity logs in one single persistent file.

    • Added a new VAPIX REST API to thermography-cgi.

Open source library support

AXIS OS-based network products use a variety of open source libraries. Therefore, it is critical that changes to these libraries are reflected in AXIS OS. Libraries are updated in the AXIS OS Active and LTS tracks in conjunction with the release. If there are no software restrictions, they are also updated in the PSS track.

If an open source library becomes end-of-life (EOL) by the upstream community, Axis aims to replace the library in a timely manner or provide support in a different way depending on its use within the AXIS OS-based network product. An example is listed below.

OpenSSL is used for cryptographic operations. The currently used OpenSSL 1.1.1 version is a long-term support (LTS) release which has reached its EOL during September 2023 as announced by the OpenSSL foundation.

  • From AXIS OS 11.6.89 and onwards, the newest OpenSSL 3.0 library (LTS) is supported in addition to the current OpenSSL 1.1.1, which will be deprecated but still usable.

  • Axis plans to remove OpenSSL 1.1.1 support in AXIS OS 12 after LTS 2024.

  • To support AXIS OS LTS tracks, Axis has a support contract agreement with the OpenSSL foundation for continued patching of OpenSSL 1.1.1.

Software Bill of Materials

A Software Bill of Materials (SBOM) is an inventory of all components included in the software. It has become an increasingly important and common part of software development lifecycle and processes. It allows IT Operations and Security staff to determine which third-party or open-source software is packaged with your software. Having an SBOM is important when it comes to securing your IT systems and protecting user data.

Why do Axis publish an SBOM?

Axis works actively with the principles of openness and building trust through transparency, the SBOM is a valued addition to these principles. It provides our customers with the information necessary to know whether or not the products we have provided may be vulnerable to cyber attacks.

For which AXIS OS versions?

Axis will provide an SBOM for all AXIS OS releases on active track starting with release 11.2.

What is included?

The Axis SBOM contains information about Axis-Proprietary components and Opensource software used to assemble AXIS OS.

What is excluded and why?

Initially, due to current licensing and technical limitations we cannot provide information about third-party proprietary software and Axis-proprietary components with dependencies. In addition to this some of the packages in the software consist of pre-compiled bundles such as our web interface and ACAPS, which have not in their turn provided an SBOM. Over time our aim is to cover all the third-party components and as much of the Axis-proprietary components as legally possible.

Where can I find the SBOM?

The SBOM is located together with the AXIS OS version it is based on. AXIS OS can be found in the product support or at the download page.

What format and why?

The Axis SBOM is produced in accordance with the CycloneDX SBOM specification. This format seems to be the most usable in other systems and strives to be a minimalist format easy to work with. Advantages of this format can be found here.

What is the difference between a SBOM and the Third party software licenses document?

The Third party software licenses document is meant to list all legal agreements and licenses with third parties related to any intellectual property that allows us to use, market and incorporate this into our products.

What about SBOM for other AXIS software?

This is a start, and we are looking into how SBOM is applicable to other software from Axis.

Where can I find more information about SBOM in general?

The National Telecommunications and Information Administration provides more educational information about SBOM.

How can I use the SBOM to analyze the software?

The Axis SBOM contains information about Axis-Proprietary and Opensource software used to assemble AXIS OS. The Axis SBOM can be used by third party vulnerability scanners to highlight known vulnerabilities in software packages. A vulnerability that applies to a certain module or feature in a software package needs to be loaded and used by the Axis device. Vulnerabilities in modules that are not loaded are not relevant but may still be flagged by the vulnerability scanner or SBOM information. For more information on how to work with the result of a security scanner see: AXIS OS Vulnerability Scanner Guide.

AXIS OS lifecycle management

AXIS OS supplies three types of tracks: active, long-term support (LTS) and product-specific support (PSS) track.

In the active track, we consistently add new features while also improving cybersecurity. In LTS, we refrain from introducing new features, prioritizing to maintain cybersecurity and ensuring compatibility. PSS will receive updates less frequently compared to our other two tracks, but we remain committed to addressing bug corrections and upholding cybersecurity measures.

Active track

The most updated and feature progressive track of AXIS OS, that is suitable for customers who want access to the newest features and improvements. New products are launched on this track, which means the most immediate access to any new features and updates.

Long-term support track

The focus of the long-term support (LTS) track is to keep the products well integrated with third-party equipment or software, and still get necessary bug fixes and cybersecurity updates. An LTS track has a fixed feature set and a new track is created every two years and maintained for 5 years. No new products or features are added to the LTS track.

Product-specific support

Product-specific support (PSS), is a rare track used when a product needs support after an LTS track has expired. The products on this track will still receive necessary bug fixes and cybersecurity updates. Each product is on its own track, the tracks are not connected with one another. Also, other non-Axis OS products have similar support tracks.

Upgrade recommendations

If upgrading via the web interface it is required to always go through each major LTS track. (9.60 => 9.80 LTS => 10.6). It is also recommended to avoid upgrading with longer version gaps, such as upgrading directly from AXIS OS 10.5 to AXIS OS 10.9. Instead, use all available releases in-between your actual AXIS OS version and the target release of the Axis device. An upgrade from AXIS OS 10.5 to AXIS OS 10.9 should be performed by upgrading through the available AXIS OS 10.6, 10.7 and 10.8 if they are available on www.axis.com.

Maintaining a upgrade strategy ensures that your Axis product receives continuous improvements. Axis Technical Services will also recommend that you update to the latest when reporting issues related to an Axis product. But since there may be several coexisting tracks, which "latest" should you choose? If you use an LTS track, you should normally update to the latest version on the same AXIS LTS track. If you intend to use the AXIS OS active track, you should update to the latest available.

  • Question: With my Axis product running on the LTS 2020 (9.80) track, should I consider updating to the latest AXIS OS active track?
    Answer: It is recommended to stay on the LTS 2020 (9.80) track but update to the latest version on that track as long as it is maintained, unless there is a need for new features available from the AXIS OS active track.

  • Question: I would like to run my Axis product on an LTS track, but currently there is no LTS track available?
    Answer: Your product was launched between two LTS tracks. It is recommended to continuously update the product on the AXIS OS active track until an LTS track is available. A new LTS track is available every two years.

  • Question: With my Axis product running on the LTS 2020 (9.80) track, should I consider updating to the new LTS track?
    Answer: Yes, but you should coordinate the change with your other schedules, e.g., VMS upgrade, network maintenance, and camera replacement cycle.

  • Question: My VMS states that it must use a certain version of the LTS track, e.g. version 9.80.3.2 on LTS 2020, but I can´t find that on axis.com. What do I do?
    Answer: If a VMS is compatible with one version on the LTS track, it is also compatible with the upcoming releases on that track. The reason most VMS's only list one version is because that's the version they've been certified with. Since compatibility is maintained within each LTS tracks, it’s safe to use other versions on that track as well.


With time, there will be several LTS tracks available for a product. All LTS tracks maintain a high level of stability through long-term bug fixing without adding new features. At some point though, technical limitations may make it impossible to update certain components in AXIS OS. In a long-term perspective, it is therefore recommended to switch to a newer LTS track. Please note that a newer LTS track may include new features, changes to default settings, and performance adjustments that could affect compatibility with your system. The products should be updated in a controlled and supervised manner after verification that the new LTS track works as expected in your environment.

Recommended upgrade path for switching LTS tracks when a new LTS track is available. Note that actual notation may differ from those in the diagram.

Downloading AXIS OS

Which AXIS OS tracks are available for an Axis edge device can be obtained when downloading AXIS OS from the download page.

AXIS OS can also be found on the product support page for each product, where you can find all available supported versions and some older. Older unsupported versions will periodically be removed due to known bugs and cybersecurity vulnerabilities that are corrected in later releases. It is recommend to only AXIS OS versions that are supported.


Please see below a list of common tags that indicate different AXIS OS tracks as seen in the picture above.

Tag exampleExplanation
11.4.63 - AXIS OS

AXIS OS active track providing new features, security and other improvements.

10.12.166 - AXIS OS LTS 2022
9.80.28 - AXIS OS LTS 2020
8.40.19 - AXIS OS LTS 2018

AXIS OS long-term support track (LTS) providing security and maintain compatibility.

6.50.5.10
5.51.4.7

Without tag. Not part of AXIS OS Active or LTS track. Only maintained during hardware warranty.

AXIS OS versioning

AXIS OS releases are denoted by a unique number combination. Older releases where named by the year and type of the release but since release 10.10 we changed the versioning. The differences and the significance of each number is explained in the figures below.

  • The major version is incremented after a new active track has been created. This happens every two years when the active track becomes an LTS track.

  • The minor version is indicating what feature set is included and updated with each feature release approximately 6 times per year.

  • The patch number is increased more often, it’s used for adding patches and bugfixes, and only final versions will be available to customers. This means that this number is only a number to mirror the external version with the internal version.

Previous versioning .

AXIS OS Support

When a product has an AXIS OS support date, what does that mean?

The product will be supported during this period with stability and security releases.

What is required to get the full support period?

The device needs to be upgraded to the latest supported LTS version. For more information on upgrade strategy, see Upgrade recommendations.

Why do some products only show the date for Hardware support and not AXIS OS support or vice versa?

Which dates will be shown depends on what information have been investigated and where the product is in its lifecycle. In some cases no dates are shown, and in other cases two different dates can be shown. If the product has a set end of support date for hardware and AXIS OS, they will both be shown.

Why do the products have such varied end of support dates?

The support dates will be set per product as each product has its own hardware configuration regarding SoC (system-on-chip), memory, etc. Since the portfolio adds new products all the time, we need also to limit the total number of products supported, otherwise the level of support would have to be reduced.

Why do some products lack an AXIS OS maintenance date?

A support date is only available for products that have a determined support period. It will be available for more products in the AXIS portfolio over time. Please contact the Axis Technical Support Helpdesk for further questions.

What happens when the AXIS OS support has expired for a product?

There will be no further updates, improvements, or security patches. There are limitations on how long we can keep a software up-to-date and make changes in an older version. It gets more difficult and complicated to make changes on software that is limited by hardware resources, and there comes a point when we no longer can keep the product cyber secure.

Where do I find out more about the current AXIS OS release forecast, upcoming changes and currently supported tracks?

Please follow and monitor the Release schedule in the AXIS OS portal.

Example of AXIS OS Support:
During its product lifecycle, AXIS Q1656-LE Box Camera will receive new features, higher cybersecurity, improvements and security patches up until 2028. From 2028 until 2033, it will get some improvements and all security patches through LTS 2028, with focus on compatibility.

Knowledge base

The AXIS OS Knowledge base has moved to its own online manual. Please got AXIS OS Knowledge base.
